Introduction:

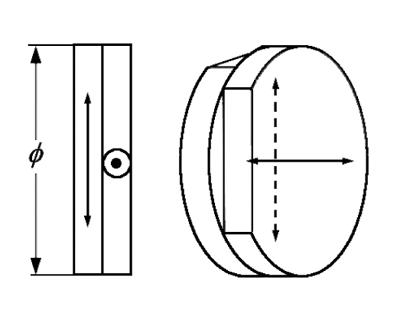

1 / 4 or half-wave latency from the two quartz pieces will stick crafted cross the optical axis, the two decided to postpone the phase difference between the thickness, over a wide wavelength bandwidth to provide accurate delay accuracy than the single wave film is more durable.Zero-wave plate is not sensitive to temperature and wavelength
DELICATE supply products with：
| |
| Matereial： |
Crystal Quartz |
| Dimension Tolerance ： |
+0.0,-0.2mm |
| Wavefront Distortion： |
λ/10 @ 632.8 nm |
| Surface Quality： |
40-20 |
| Retardation Tolerance： |
<λ/500
|
| Parallelism: |
≤1 arc second |
| Wavelength Range: |
350-2100nm |
| Coating: |
R<0.2% on both surface at central wavelength | | |
|
| |
|
|
|
