  COLOR GLASS FILTERS
View Original Picture
Click to see more pictures of products:
   Details

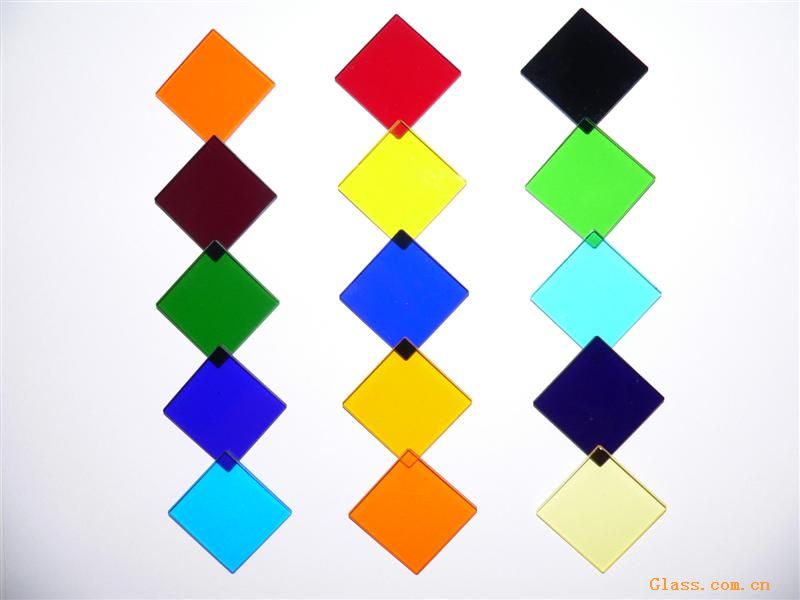

Color Glass Filter

It''s fabricated by special color glass material. Color Glass Filters are designed by their manufacturers to transmit and / or absorb different wavelengths of light. Tian Cheng optics can supply a full range of filter. They are short pass, long pass, band pass, ultraviolet, infrared, heat absorbing, and color temperature conversion filters. We use material by China to Schott, Hoya, and other manufacturers to process them. Metallic films, colored glasses and thin dielectric films filter are all available per your requirements.

Application:

Projection Optics System

Imaging

Sensor

Laser Measurement System


Specification:



Material

Color glass from Schott or equivalent

Diameter Tolerance

+0.00,-0.15 mm

Thickness Tolerance

±0.2 mm

Clear Aperture

>85%

Surface Quality

60-40 scratch and dig

Parallelism

< 3 arc minute

Wavefront Distortion

1λ per 25 mm @632.8 nm

Protective Bevel

<0.25 mm x 45°

Coating

Uncoated



Color Glass Filter Standard Products:

Dimension (mm)

Ф12.7x2.0

Ф25.4x2.0

12.7x12.7x2.0

Color

Part No.

Part No.

Part No.

Red

CF101

CF201

CF301

Green

CF102

CF202

CF302

Blue

CF103

CF203

CF303

Yellow

CF104

CF204

CF304

Magenta

CF105

CF205

CF305

Note: The general tolerance specifications above provide a guideline regarding manufacturing capabilities for optics ranging in size from 1-200mm. The manufacturing limits are not absolute; tighter tolerances may be possible. Part specific tolerances may vary depending on component size, shape and material.
