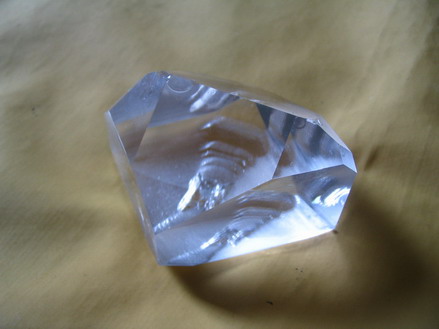

Lithium Triborate(LiB305,LBO)

Application of advantages:
LBO crystal, Lithium Triborate, LiB3O5, is an excellent nonlinear optical crystal for frequency doubling (SHG) / tripling (THG) of Nd:YAG, Nd:YLF and Nd:YVO4 lasers. LBO crystal is also one of the most useful nonlinear optical materials in ultraviolet and visible laser applications.
LBO crystal is unique in many aspects, especially its wide transparency range, moderately high nonlinear coupling, high damage threshold and good chemical and mechanical properties. LBO crystal allows temperature-controllable non-critical phase-matching (NCPM) for Type I SHG, and also provides room temperature NCPM for Type II SHG. It possesses a relatively large angular acceptance bandwidth, reducing the beam quality requirements for source lasers. LBO crystal is also a good choice for THG to 355nm


LBO is perfectly suitable for various nonlinear optical applications:

More than 480mW output at 395nm is generated by frequency doubling of a 2W mode-locked Ti:Sapphire laser (<2ps, 82MHz). The wavelength range of 700-900nm is covered by a 5x3x8mm3 LBO crystal.
More than 80W green output is obtained by SHG of a Q-switched Nd:YAG laser in a type II 18mm long LBO crystal
The frequency doubling of a diode pumped Nd:YLF laser (>500µJ @ 1047nm, <7ns, 0-10KHz) reaches more than 40% conversion efficiency in a 9mm long LBO crystal.
The VUV output at 187.7 nm is obtained by sum-frequency generation.
2mJ/pulse diffraction-limited beam at 355nm is obtained by intra-cavity frequency tripling of Q-switched Nd:YAG laser.

HG offers:

Crystal length up to 50 mm and aperture up to 30×30 mm
Thin crystals down to 10 µm thickness
AR, BBAR, P-coating
Different mounting and repolishing services
Accurate quality control
Attractive prices and fast delivery


Standard specifications of LBO crystals:
Flatness λ/8 @ 633 nm
Parallelism < 20 arcsec
Perpendicularity < 5 arcmin
Angle tolerance < 30 arcmin
Aperture tolerance ± 0.1 mm
Surface quality 10/5 scratch & dig per MIL-O-13830A
Clear aperture 90% of full aperture



Standard crystal list：
LBO Size
(mm) θ φ Coating Application
LBO 3x3x10 90 11.6 AR/AR @ 1064+532 nm SHG @ 1064 nm, Type 1
LBO 3x3x15 90 11.6 AR/AR @ 1064+532 nm SHG @ 1064 nm, Type 1
LBO 5x5x15 90 11.6 AR/AR @ 1064+532 nm SHG @ 1064 nm, Type 1
LBO 3x3x15 90 0 AR/AR @ 1064+532 nm NCPM SHG @ 1064 nm,
T = 149 deg C, Type 1
LBO 3x3x20 90 0 AR/AR @ 1064+532 nm NCPM SHG @ 1064 nm,
T = 14.9 deg C, Type 1
LBO 3x3x10 42.2 90 AR/AR @ 1064+532/355 nm THG @ 1064 nm, Type 2
LBO 3x3x15 42.2 90 AR/AR @ 1064+532/355 nm THG @ 1064 nm, Type 2
LBO 5x5x15 42.2 90 AR/AR @ 1064+532/355 nm THG @ 1064 nm, Type 2
