  BALL-LENSES
View Original Picture
Click to see more pictures of products:
   Details

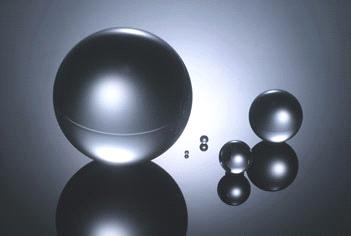

Ball lenses

Spherical ball lenses are widely used in optical measurement systems, projection & imaging optical systems. Also for laser collimating and focusing, laser-to-fiber coupling, fiber-to-fiber coupling, and fiber-to-detector coupling.

Application:

Optical Measurement System
Projection Optics System
Imaging Optics System
Astronomical Optics


Specification:

Material

BK7 grade A, B270, UV grade Fused Silica, Sapphire etc.

Diameter Tolerance

±0.05 mm (Standard), up to +0.000/-0.002 mm

Sphericity

±0.005 mm (Standard), up to +/-0.6 um

Surface Quality

60-40 S/D (Standard), up to 20-10 S/D

Coating

uncoated
