MgF2 Crystals

Magnesium Fluoride (MgF2) crystal is harder and tougher than Calcium Fluoride (CaF2), but relatively soft and somewhat hygroscopic compared with Fused Silica. And it is good to resistant to mechanical and thermal shock, to radiation, and is chemically stable.

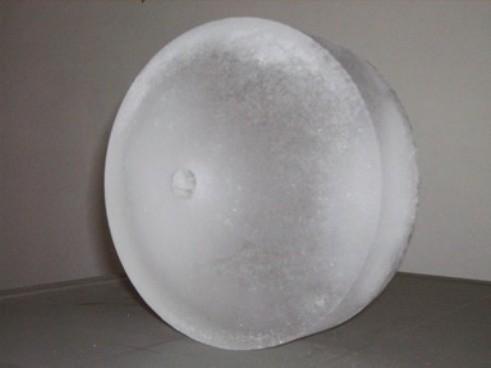

 Magnesium Fluoride is grown by vacuum Bridgman-Stockbarger technique in ingots of various diameters, but 100mm is standard we provide. We can supply high quality Magnesium Fluoride single crystals of VUV and IR grade MgF2 material.

We can provide windows, mirrors, lens, prisms, polarizer, wedges, substrates and other optical components according to customers’ specifications and drawings.

Crystal Structure

Tetragonal, space group:P42/mnm; a = 4.621 Å, c = 3.051 Å

Transmission Range

0.11-7.5 µm

Refractive Index

no = 1.3836, ne = 1.3957 @0.405 µm

Reflective Loss

10.61% @0.12 µm, 4.42% @4,0 µm

Reststrahlen

20.0 µm

Density

3.177 g/cm3 @298K

Melting Point

1255°C

Molecular Weight

62.32

Thermal Conductivity

|| c: 21 W/(m·K) , ⊥c: 33.6 W/(m·K) @27°C

Specific Heat

1130 J/(kg·K) @298K;

Thermal Expansion

|| c: 8.8´10-6/ºC, ⊥c: 13.7´10-6/ºC @20°C

Hardness

415, Knoop; 6, Mohs

Young`s Modulus

|| c:169.1 GPa, ⊥c: 79.7GPa

Shear Modulus

|| c:57.1 GPa, ⊥c: 95.2GPa

Bulk Modulus

101.32 GPa

Rupture Modulus

49.0 MPa

Elastic Coefficients

C11=140.2; C12=9.5; C13=62.9; C33=204.7; C44=56.8; C66=95.7 GPa

Dielectric Constant

|| c: 4.87, ⊥c: 5.45 @95 KHz – 42 MHz

Solubility in Water

0.0076 g / 100g @18°C

Cleavage Planes

(110)

Application

windows, mirrors, lens, prisms, polarizer, wedges and substrates

Remarks

Max. temperature for application: 500°C

Poisson Ratio

0.577

Bandgap,

10.8 eV

Damage Threshold

1J/cm2, 8ns at 248nm typical
