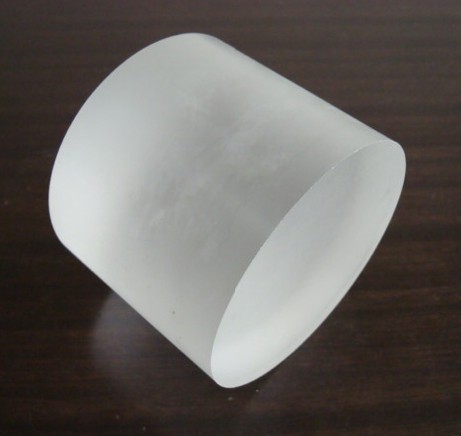

CaF2 Crystals

Transmissible in the range from the vacuum ultraviolet region of 130nm to the infrared region of 9µm, the crystal finds use in windows, lenses and prisms operating from VUV to IR spectrum. This material has found wide use in high power laser optics due to its low absorption. Polished surfaces are stable and will last several years under normal conditions. Due to its low refractive index, Calcium Fluoride can be used without anti-reflection coating.

Properties (CaF2)



Transmission Range

0.13 - 9 µm

Refractive Index

1.501830 @0.193 µm; 1.40568 @4.4 µm

Reflective Loss

5,6% @4 µm

Reststrahlen

35 µm

Density

3.18 g/cm3

Melting Point

1418°C

Molecular Weight

78.08

Thermal_Conductivity

9.71 W/(m·K)

Specific Heat

854 J/(kg·K)

Thermal Expansion

18.87 - 20.16 (·10-6 /°C (25°C))

Hardness (Mohs)

158.3

Mohshärte

4

Young`s Modulus

75.8 GPa

Shear Modulus

33.77 GPa

Bulk Modulus

82.71 GPa

Rupture Modulus

36.5 MPa

Elastic Coefficient

C11 = 164; C12 = 53; C44 = 33.7 GPa

Dielectric Constant

6.76 @27°C f= 100kHz

Solubility in Water

0.0017 g/100g @20°C

Type of Material

Single crystal, synthetic

Crystal Structure

Cubic, CaF2 type structure, Fluoride or Fluorite type structure, Fm3m Oh5, a0= 5,4623 Å

Cleavage Planes

{111}

Size of ingots

max. 200 mm ø

Application

The material is available in different quality levels (IR, UV, VUV-Laser-grade). Field of application is the IR analytic, astronomical- und camera lenses and optics for Excimer laser.

Remarks

Material specifications: 1. Measurements of transmission (VUV/UV-VIS/IR) 2. Homogenity of Refractive Index 3. Stress-induced birefringence
