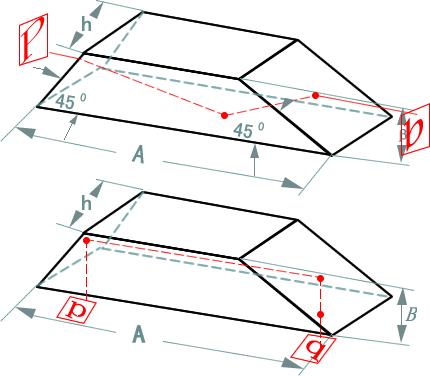

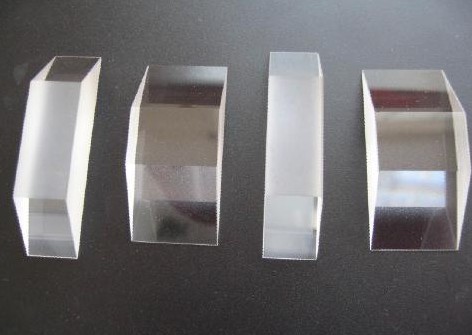

Dove Prism is a form of prism invented by H. W. Dove. It resembles half of a common right-angle prism in which a ray entering parallel to hypotenuse face is reflected internally at that face and emerges parallel to its incident direction. One of the incident rays emerges along a continuation of its incident direction, and if the prism is rotated about that ray hrough some angle, the image rotates through twice that angle. A Dove Prism must be used in parallel light.
Specification:
|
Material |
BK7 grade A optical glass |
|
Dimension Tolerance |
+0.0/-0.2mm |
|
Clear Aperture |
>85% |
|
Surface Quality |
60-40 scratch and dig |
|
Angle Tolerance |
< 3 arc minutes |
|
Flatness: |
λ/2@632.8nm |
|
Protective Bevel |
0.25 mm x 45° |
Dove Prism Standard Products:
|
Part No. |
Material |
Model |
A (mm) |
B (mm) |
h (mm) |
|
DIT90 |
SF11 |
180° |
9.3 |
2.6 |
1.3 |
|
DIT90 |
SF11 |
180° |
14.0 |
5.0 |
2.6 |
|
DIT92 |
BK7 |
Dove |
21.1 |
5.0 |
5.0 |
|
DIT93 |
BK7 |
Dove |
42.3 |
10.0 |
10.0 |
|
DIT94 |
BK7 |
Dove |
63.4 |
15.0 |
15.0 |
|
DIT95 |
BK7 |
180° |
80.0 |
20.0 |
20.0 |
Note: Other sizes, material and coatings are available upon request. |
| |
|
|
|
