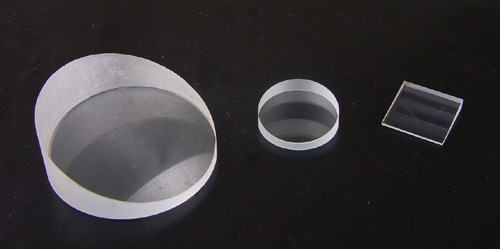

| Wedge is an optical element having plane-inclined surfaces, usually the faces are inclined toward one another at very small angles. Wedges divert light toward their thicker portions. | |
|
Specification:
|
Material |
BK7 grade A optical glass |
|
Dimension Wavelength |
632.8 nm |
|
Design Index |
1.51467±0.0005 |
|
Diameter Tolerance |
+0.0,-0.1 mm |
|
Thickness Tolerance |
±0.2 mm |
|
Clear Aperture |
>85% |
|
Surface Quality |
60-40 scratch and dig |
|
Wedge Angle Tolerance |
< 1 arc minute |
|
Flatness |
λ/4 @ 632.8 nm |
|
Protective Bevel |
0.25 mm x 45° |

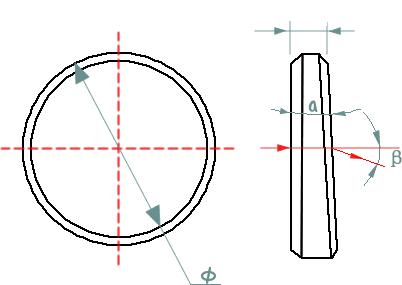

BK7 Wedge Prism Standard Products:
|
Part No. |
Ф (mm) |
β (mm) |
α (mm) |
|
DIT001 |
25.4 |
1° |
1°57 |
|
DIT002 |
25.4 |
2° |
3°53 |
|
DIT003 |
25.4 |
4° |
7°46 |
|
DIT004 |
25.4 |
6° |
11°39 | Note: Other size, material and coatings are available upon request.
|
| |
|
|
|
