Details |
 |

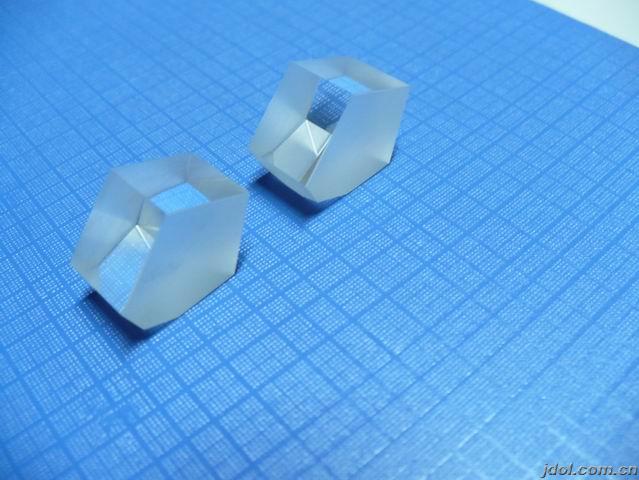

By adding a wedge and with partial reflective coating on surface S1, it can be used as
Beamsplitter, which we named as Beamsplitter Penta Prism. Transmission/ Reflection (T/R)
ratio of 20/80, 50/50 or others for Beamsplitter Penta Prism is available upon equest.
Specification:
|
Material |
BK7 grade A optical glass |
|
Dimension (h) Tolerance |
±0.1 mm |
|
Dimension (A) Tolerance |
±0.2 mm |
|
Clear Aperture |
>80% |
|
Surface Quality |
60-40 scratch and dig |
|
90° Deviation |
< 30 arc sec., up to 5 arc sec. Refer to the table |
|
Flatness: |
λ/4 @632.8 nm |
|
Reflectivity |
R>95% per face @630-680 nm |
|
Protective Bevel |
0.25 mm x 45° |
BK7 Beamsplitter Penta Prism Standard Products:
|
A x h (mm) |
1 min. deviation |
30 sec. deviation |
10 sec. deviation |
5sec. deviation |
|
Part No. |
Part No. |
Part No. |
Part No. |
|
7 x 6 |
101 |
201 |
301 |
401 |
|
8 x 8 |
102 |
202 |
302 |
402 |
|
10 x 10 |
103 |
203 |
303 |
403 |
Note: Other sizes, material and coatings are available upon request. |
| |
|
|
|
