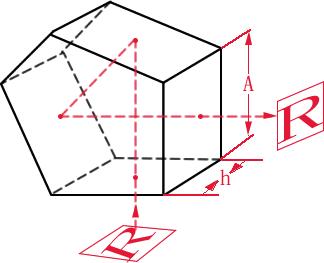

Penta prism has two important properties. The first is that as the image is deviated by 90 degrees it is neither inverted nor reversed. The second is that the penta-prism is a constant deviation prism, meaning that the same exact 90-degree deviation angle applies to all rays transmitted by the useful aperture regardless of the angles between these rays and the optical axis. The deviation is thus independent of the prism orientation, making the penta-prism especially important in application in which prism orientation can‘t be precisely controlled.
This prism is commonly used in optical tooling, alignment, rangefinder, photographic finder and other instrumental applications.
Specification:
|
Material |
BK7 grade A optical glass |
|
Dimension (h) Tolerance |
±0.1 mm |
|
Dimension (A) Tolerance |
±0.2 mm |
|
Clear Aperture |
>80% |
|
Surface Quality |
60-40 scratch and dig |
|
90° Deviation Tolerance: |
< 30 arc sec., up to 5 arc sec. |
|
Flatness: |
λ/2 at 632.8 nm(Standard), up to λ/4 @632.8 nm |
|
Reflectivity |
R>95% per face @630-680 nm |
|
Protective Bevel |
0.25 mm x 45° |
BK7 Penta Prism Standard Products:
|
A x h (mm) |
1 min. deviation |
30 sec. deviation |
10 sec. deviation |
5sec. deviation |
|
Part No. |
Part No. |
Part No. |
Part No. |
|
7 x 6 |
DIT15 |
DIT25 |
DIT35 |
DIT0401 |
|
8 x 8 |
DIT16 |
DIT26 |
DIT36 |
DIT0402 |
|
10 x 10 |
DIT17 |
DIT27 |
DIT17 |
DIT0403 |
Note: Other sizes, material and coatings are available upon request. |
| |
|
|
|
