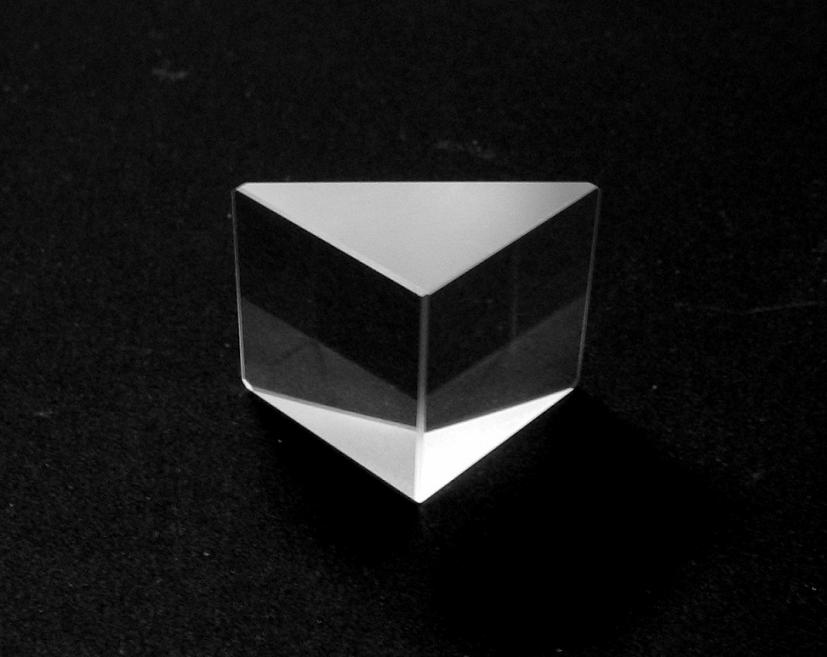

  RIGHT ANGLE PRISMS
View Original Picture
Click to see more pictures of products:
   Details
Right angle prisms are generally used to achieve a 90° light path bend. Depending on prisms orientation, images will be inverted, but correct left-to-right. If the prism is rotated 90° , images viewed though the prism will be erect, but reversed left-to-right. Prisms can also be used in combination for image/beam displacement.
90° Deflection
     90° deflection occurs at the face. The hypotenuse image is erected and reversed.
180° Deflection
     180° deflection uses with hypotenuse as the entrance and exit face. The main application is as a retro-reflector provided that the plane of incident beam includes the vertex.




Specification:

Material

BK7 grade A optical glass or UV fused silica

Dimension Tolerance

+0.0, -0.2 mm

Clear Aperture

>80%

Surface Quality

60-40 scratch and dig

90° Deviation

3'''''''''''''''', 1'''''''''''''''' or 30"

Flatness

λ/2 @632.8 nm

Protective Bevel

0.25 mm x 45°



BK7 Right Angle Prism Standard Products:

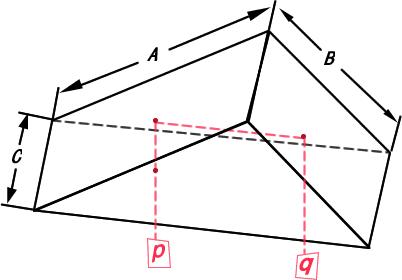

Size (mm)

3 min. deviation

1 min. deviation

30 sec. deviation

Part No.

Part No.

Part No.

A=B=C=3.2

DIT0101

DIT0201

DIT0301

A=B=C=4.0

DIT0102

DIT0202

DIT0302

A=B=C=10.0

DIT0103

DIT0203

DIT0303

A=B=C=12.7

DIT0104

DIT0204

DIT0304

Note: Other sizes, material and coatings are available upon request.
